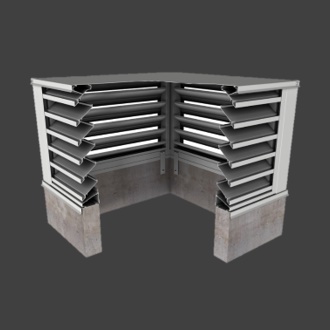

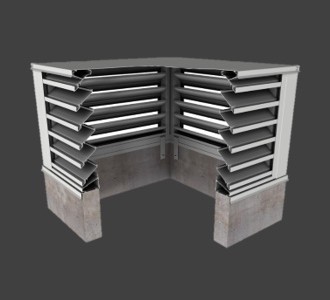

BCDE439 – 39° Blade Box Corner Penthouse Drainable Louver


(Not available in the US)

Price BCDE439 stationary drainable louvers feature alloy 6063-T5 extruded 4” aluminum blades positioned at a 39° angle. The drainable louvers achieve optimum air performance and water penetration ratings with vertical and horizontal gutter systems that capture droplets before they cascade from blade to blade and are entrained in the airstream. This louver is available with visible mullions that are joined with an extruded aluminum “I” connection, or continuous horizontal blades that utilize concealed blade braces and hidden vertical supports in place of jamb frames to present uninterrupted horizontal blade appearance.

Standard Features:
• Drainable blade
• .081” extruded aluminum blades and frames
• Nominal 55.3% free area (based on 48” x 48”)
• Integral perimeter caulking stop
• 1/2" x 1/2" (12 x 12) 16 gauge expanded aluminum bird screen without frame
• Mill finish

• Welded construction
• Extended sill (loose) 14 GA. aluminum
• Blank-offs are available in Aluminum with or without Insulation. Insulation is available in 1”, 1.5”, 2”, or 3” thickness
• Variety of Mounting options
• Exterior or interior frame mounting
• Variety of bird screens, insect screens and frames available
• Wide variety of finishes: baked enamel, prime coat, custom finishes, clear anodized and colour anodized
• Select from Price Colour Chart or provide colour sample to match
• Note: Colour variations can be expected within the same order and even on the same louver due to the anodizing process
