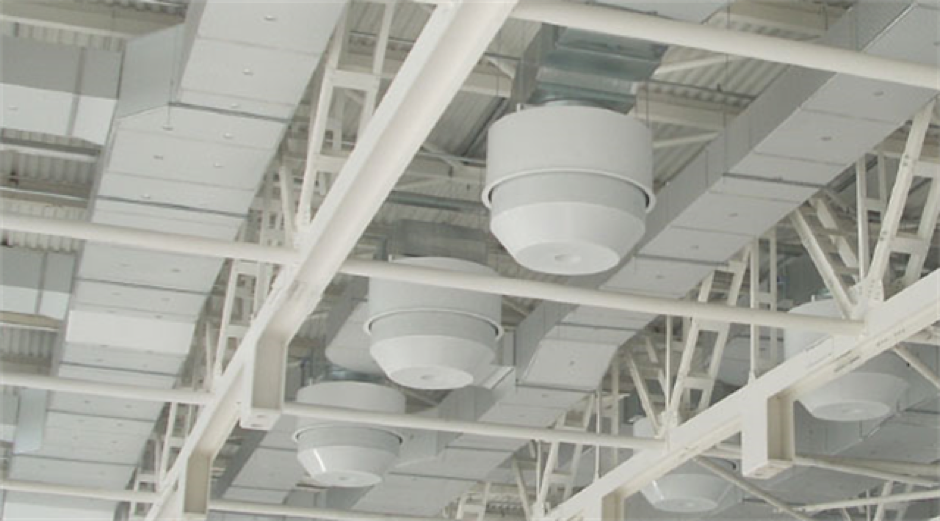

  • Conical displacement outlet 2

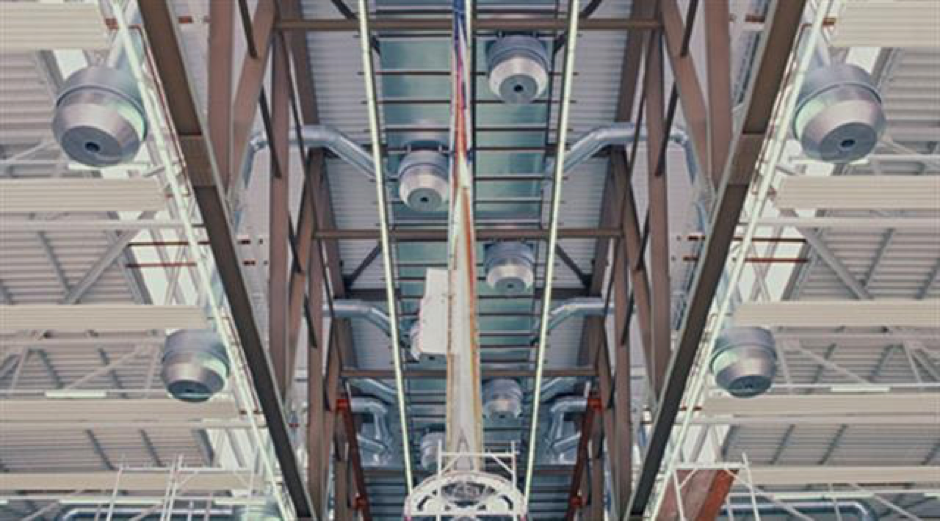

  • Conical displacement outlet 3

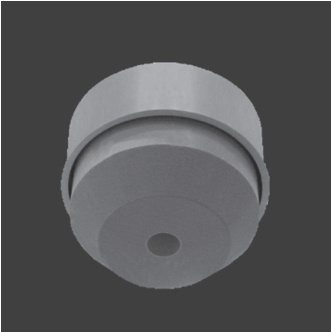

Conical Displacement Outlet VA-K

Data :
Volume flow rate range: 280 – 2 800 l/s [1 000 – 10 000 m³/h]
Sizes: DN 630 and DN 800
Discharge height: 6 – 30 m

Features

  • Low-turbulence displacement flow, especially suited for aircraft painting hangars
  • Air discharge direction adjustable to internal loads
  • Built-in electric actuator for adjustment of jet penetration depth
  • Low pressure drop
  • Temperature difference between supply air and return air up to –5 K in cooling mode and +8 K in heating mode
  • Smooth operation in heating-up operation up to Delta T = +10 K
