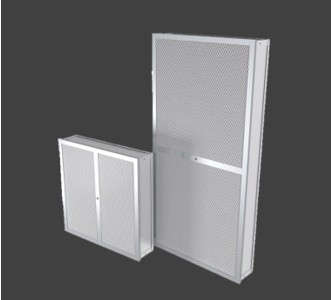

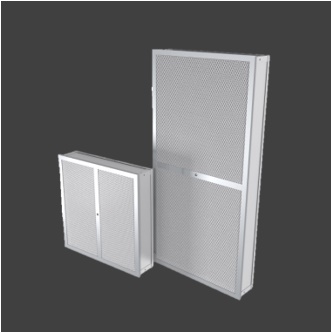

LFDCX – Laminar Flow Diffuser With Integrated HEPA Filter


LFDCX – Laminar Flow Diffuser With Integrated HEPA Filter
  • laminar-flow-diffuser-with-integrated-hepa-filter
  • laminar-flow-diffuser-with-integrated-hepa-filter-2

LFDCX – Laminar Flow Diffuser With Integrated HEPA Filter

Overview

The low profile Laminar Flow Diffuser with Integrated HEPA Filter (LFDCX) is designed to suit the critical requirements of modern cleanrooms. The LFDCX provides a means of controlling particle contamination within a room by providing unidirectional laminar airflow with low initial face velocity, supplying clean air to the space without entrainment of contaminated air from the occupied space. With a larger filter area, the LFDCX can achieve higher airflow capacities than a diffuser with a room-side replaceable filter.

Typical Applications
The LFDCX is typically used in applications that require clean, low velocity supply air for critical processes requiring minimal turbulence or induction of room air. These applications include cleanrooms for aerospace and semiconductor manufacturing.

Construction Options

  • Damper
    • Fixed distribution plate
    • Adjustable distribution plate
    • Butterfly damper
  • Filter Media
    • HEPA
    • ULPA
  • Filter depth
    • 2 in.
    • 4 in.
  • Options
    • Exterior insulation

Filters
Available filter efficiencies:

HEPA      99.99% at 0.3 µm
ULPA      99.999% at 0.12 µm
