NJE2 – 2″ Deep, 30° J-Blade Extruded Stationary Louver

Overview

(Not available in the US)

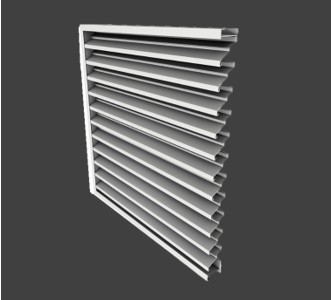

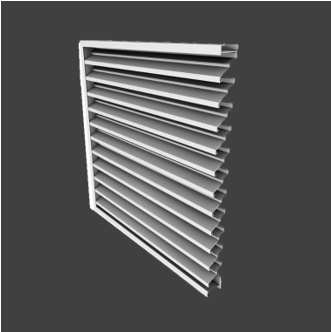

Price NJE2 extruded stationary louvers feature alloy 6063-T5 extruded aluminum blades. The louver features a “J” blade profile in a 2” deep assembly with the blades positioned at a 30° angle. This J-blade louver is available with visible mullions.
Standard Features:
• "J" blade profile
• .064” extruded aluminum blades and frames
• Nominal 44.1% free area (based on 48”x 48”)
• 1/2" x 1/2" (12 x 12) 16 gauge expanded aluminum bird screen without frame
• Mill finish

Options:
• Welded construction
• Extended sill (loose) 14 GA. aluminum
• Blank-offs are available with or without insulation. Insulation is available in 1”, 1.5”, 2”, or 3” thickness
• Variety of mounting options
• Exterior or interior frame mounting
• Variety of bird screens, insect screens and frames available
• Wide variety of finishes: baked enamel, prime coat, custom finishes, clear anodized and colour anodized
• Select from Price Colour Chart or provide colour sample to match
• Note: Colour variations can be expected within the same order and even on the same louver due to the anodizing
process
