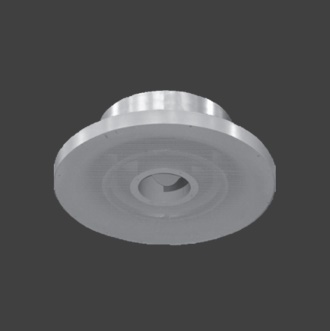

Radial Displacement Outlet

Data :
Volume flow rate range: 280 – 2 200 l/s [1 000 – 8 000 m³/h]
Nominal sizes: DN 315 – DN 710
Coverage radius: ≤ 5 m

Features

  • Low-turbulence displacement flow
  • Placement above the occupied zone at a height of 4 to 10 m, freely suspended
  • Jet direction more or less spread, vertical downflow
  • When heating, higher jet momentum downwards by opening of core tube
  • Well suited for cooling and heating
  • Adjustment
    • via thermostatic control unit; advantages: no wiring, no auxiliary energy required
    • with electric actuator
    • with manual device
