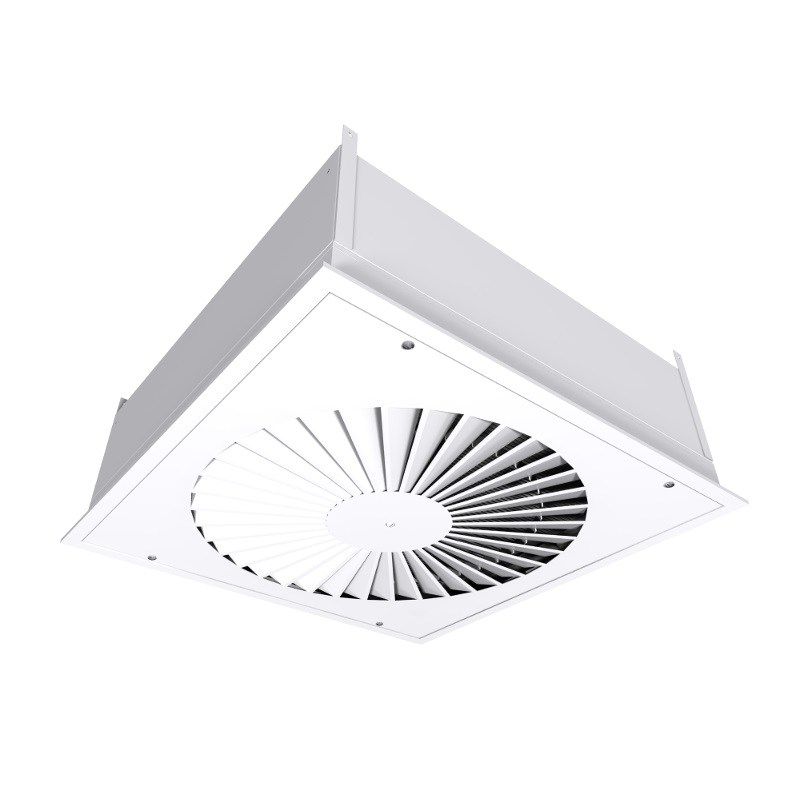

  • radial-vane-diffuser-with-filter-2

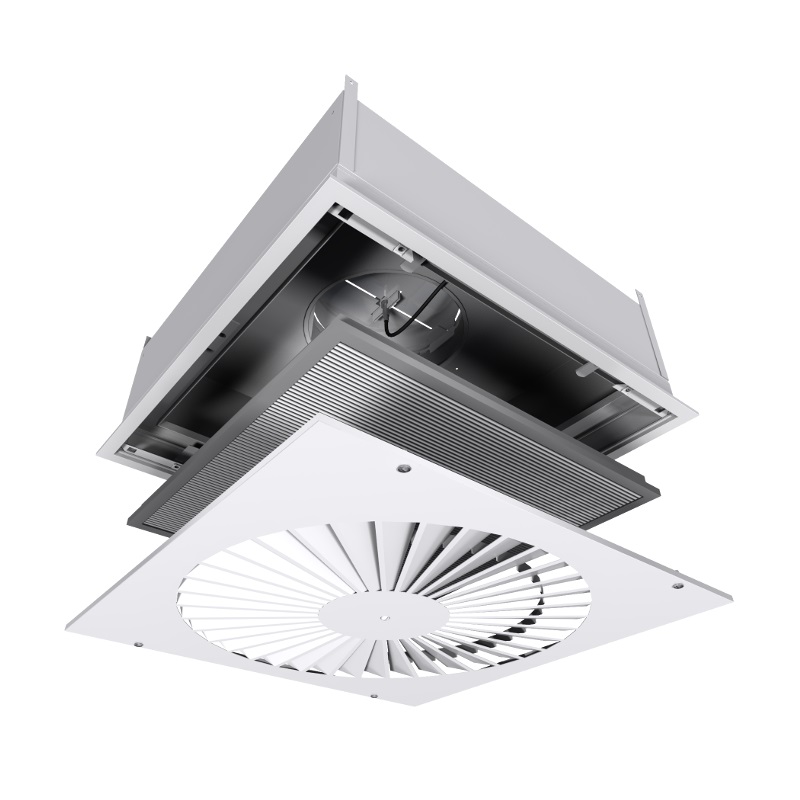

  • radial-vane-diffuser-with-filter-3

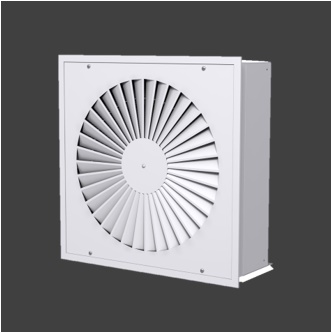

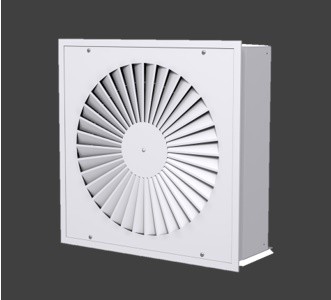

RVDC – Radial Vane Diffuser With Filter

Overview

The Radial Vane Diffuser with HEPA Filter (RVDC) features radial slots that provide a high induction votex airflow that projects horizontally from the face of the diffuser. The resulting airflow provides rapid mixing of supply air with the room air and short throws, allowing large quantities of air to be introduced while maintaining thermal comfort. The rapid mixing of filtered supply air with the room air reduces particle contamination and is ideal for cleanrooms.

Typical Applications
The air pattern produced by the RVDC promotes a high rate of induction and rapid mixing of clean supply air with the room air, thereby reducing particle contamination and making this product ideal for cleanrooms

Construction Options

  • Options
    • Cable operated damper (VCR8EC)
    • Static pressure port
    • External insulation

Filters
Available filter efficiencies:

HE           95% at 0.3 µm
HEPA      99.99% at 0.3 µm
ULPA      99.999% at 0.12 µm
