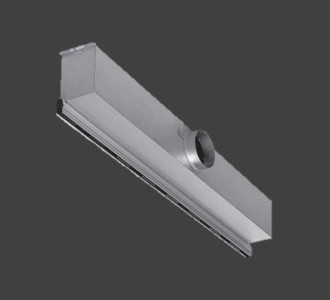

Adjustable Induction Outlet IN-V

Data :
Volume flow rate range: 2.8 – 110 l/(s•m) [10 – 400 m³/(h•m)]
Element width: 15 or 28 mm
Standard lengths: 1 050, 1 200, 1 350 and 1 500 mm
Discharge height: 2.5 – 5 m

Features

  • Stable single jets with alternate or one-sided discharge, for all ceilings
  • Discharge direction adjustment from horizontal to nearly vertical
  • Type IN-V2: element width: 28 mm per row; also available in 2, 3 or 4 rows
  • Type IN-V3: element width: 15 mm; 1 row
  • With connection box and circular connection spigot
  • High induction effects and high thermal comfort.
  • Low noise or low sound power
  • Optional Adjustable Volume Control Damper from the room
  • Can flush with the ceiling
