HGPL – Hospital Grade Laminar Flow Common Plenum

Overview

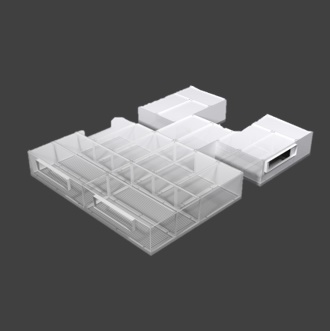

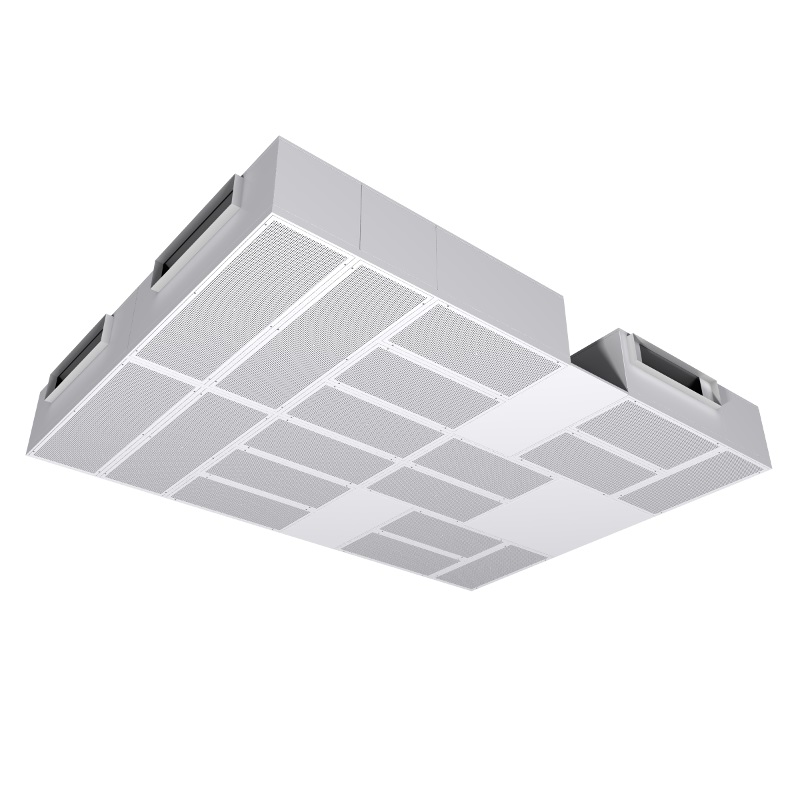

The Hospital Grade Laminar Flow Common Plenum (HGPL) is an integrated plenum system that uses multiple laminar flow diffusers connected by a common plenum to act as a single large diffuser array. The single large diffuser design results in a system with significantly fewer duct connections and equalized airflow across the laminar diffuser face. This system takes the place of individually ducted laminar flow diffusers installed in an engineered ceiling grid.

Features

  • Simplified installation and ductwork
  • Ideal for installations with limited space
  • Fully customizable
  • Single large diffuser array
  • Room side removable HEPA filters
Typical Applications
The HGPL is designed for use in areas that demand strict clean air control and uniform, laminar airflow, including hospital operating rooms and cleanrooms. Modular construction and low plenum height make the HGPL ideal for applications with high capacity air distribution requirements with cost and space constraints.
