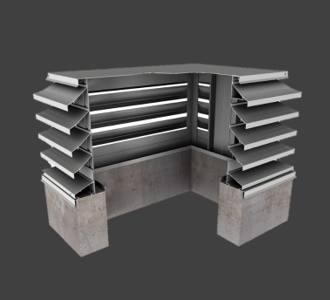

MCZE439 – 39° Z-Blade Miter Corner Penthouse Stationary Louver


(Not available in the US)

Price MCZE439 stationary louvers feature alloy 6063-T5 extruded aluminum blades. The louver features a “Z” blade profile in a 4” deep assembly with the blades positioned at a 39° angle. The drainable head and jambs enable the louver to achieve optimum air performance and water penetration ratings. This Z-blade louver is available with visible
mullions that are joined with an extruded aluminum “I” connection, or continuous horizontal blades that utilize concealed blade braces and hidden vertical supports in place of jamb frames to present uninterrupted horizontal blade appearance.

Standard Features:
• "J" blade profile
• .081” extruded aluminum blades and frames
• Nominal 49.1% free area (based on 48”x 48”)
• Integral perimeter caulking stop
• 1/2" x 1/2" (12 x 12) 16 gauge expanded Aluminum bird screen without frame
• Mill finish
• Continuous blade sections (concealed supports)

• Welded construction
• Extended sill (loose) 14 GA. aluminum
• Blank-offs are available in aluminum with or without insulation. Insulation is available in 1”, 1.5”, 2”, or 3” thickness
• Variety of mounting options
• Exterior or interior frame mounting
• Variety of bird screens, insect screens and frames available
• Wide variety of finishes: baked enamel, prime coat, custom finishes, clear anodized and colour anodized
• Select from Price Colour Chart or provide colour sample to match
• Note: Colour variations can be expected within the same order and even on the same louver due to the anodizing process
