NSE1 – 1.5″ Deep, Straight Blade Extruded Stationary Louver


NSE1 – 1.5″ Deep, Straight Blade Extruded Stationary Louver
  • 1.5-deep-straight-blade-extruded-stationary-louver-2

NSE1 – 1.5″ Deep, Straight Blade Extruded Stationary Louver

Overview

(Not available in the US)

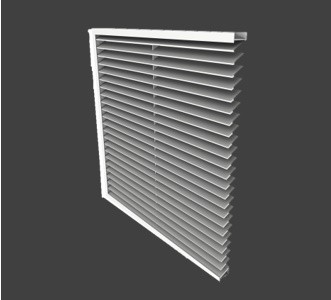

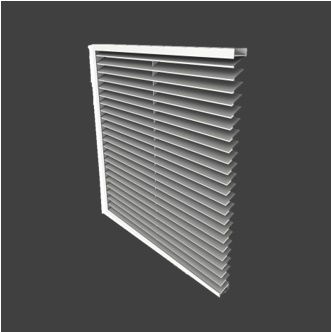

Price NSE1 stationary louvers feature alloy 6063-T5 extruded aluminum blades. The louver features a straight blade profile in a 1.5” deep assembly. This straight blade louver is available with visible mullions that are connected with a joiner plate.
Standard Features:
• .125” extruded aluminum blades
• Nominal 69.3% free area (based on 48”x 48”)
• 1/2" x 1/2" (12 x 12) 16 gauge expanded aluminum bird screen without frame
• Mill finish

Options:
• Welded construction
• Extended sill (loose) 14 GA. aluminum
• Blank-offs are available with or without insulation. Insulation is available in 1”, 1.5”, 2”, or 3” thickness
• Variety of mounting options
• Exterior or interior frame mounting
• Variety of bird screens, insect screens and frames available
• Wide variety of finishes: baked enamel, prime coat, custom finishes, clear anodized and colour anodized
• Select from Price Colour Chart or provide colour sample to match
• Note: Colour variations can be expected within the same order and even on the same louver due to the anodizing process
