Products

VFX Venturi FX Valve

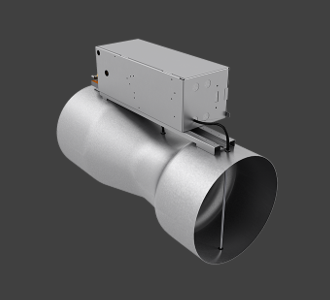

VFX Venturi FX Valve

The Venturi FX Valve is designed specifically for room pressure control and laboratory applications. The VFX measures flow using ports installed non-invasive to the airflow stream, greatly reducing the risk of airborne particulates interfering with the control or accuracy of the valve.

  • Controlled accuracy within +/-5% of measured airflow
  • Closed loop airflow measurement

Catalogue



VV Venturi Valve

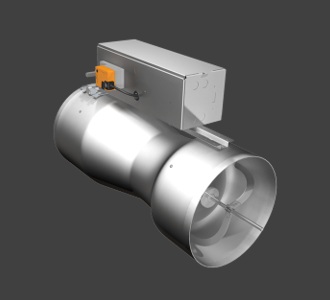

VV Venturi Valve

Venturi Valves are mechanically pressure independent airflow control valves designed specifically for room pressure and fume hood control applications. The highly-engineered internal cone assembly ensures the valve will respond instantaneously to changes in duct static pressure.

  • Characterized and calibrated using NVLAP-accredited airflow stations
  • Medium or low pressure operation
  • Operating pressure feedback

Catalogue



FHC Fume Hood Controller

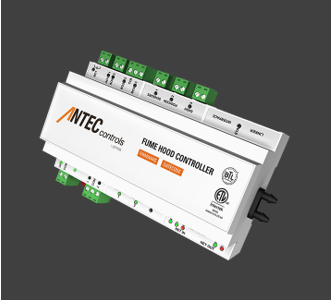

FHC Fume Hood Controller

The Fume Hood Controller is an exceptionally versatile controller for monitoring and controlling fume hood face velocity. Designed to meet the needs of all fume hood types, the FHC provides assurance that required fume hood face velocity is satisfied and the environment is safe.

  • Sash position sensing, sidewall face velocity sensing or hybrid control configurations
  • Less than 1 second speed of response as defined by ANSI Z9.5

Catalogue



PACE Critical Space Controller

PACE Critical Space Controller

PaceTM is a highly flexible controller designed for room containment through pressurization. PaceTM delivers seamless control in isolation and operating rooms and performs in tandem with the Fume Hood Controller(FHC) when applied to pharmacy or laboratory spaces.

  • Pressure measurement or volumetric offset control strategies
  • Airflow control utilizing Venturi Valves, Venturi FX Valves or Terminal Units
  • BACnet MS / TP

Catalogue



USA – Ultrasuite® (Air distribution and lighting solution for OT Ceiling)

USA – Ultrasuite® (Air distribution and lighting solution for OT Ceiling)

Overview

Ultrasuite® is a customizable air distribution and lighting solution specifically engineered for hospital operating rooms. High-output LED lighting combined with precision equalized laminar airflow eliminates the traditional “light ring”, opening valuable ceiling space for surgical equipment while optimizing contaminant removal from the surgical zone. Conforming to all ASHRAE 170 requirements, Ultrasuite® is the perfect combination of performance, aesthetics and efficiency.

Typical Applications
The Ultrasuite® is a fully customizable lighting and air distribution packaged system designed specifically for Operating Rooms. The Ultrasuite® meets the unique needs of operating rooms by providing low velocity laminar airflow, providing lighting directly above the patient table, and by freeing up valuable ceiling space for ceiling mounted equipment.

Features

  • Integrated LED lighting and air distribution
  • High efficiency: 100+ lm/W LED lighting
  • Long lifespan: L80 > 60,000 hours
  • Dimmable: up to 300 fc at the surgical table
  • Durable: IP67 sealed LEDs
  • High quality lighting: 90+ CRI

Catalogue



MVM Multi-Variable Monitor

MVM Multi-Variable Monitor

The Multi-Variable Monitor is a highly adaptable touchscreen interface designed to display critical room information. The MVM is configurable as a remote station to monitor multiple rooms or as a single room interface.

  • 7 or 15 inch high-resolution touchscreen display
  • Password protected menus
  • BACnet MS/TP or BACnet IP

Catalogue



PMT Touchscreen Room Pressure Monitor

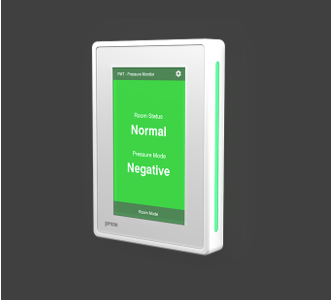

PMT Touchscreen Room Pressure Monitor

The Touchscreen Room Pressure Monitor is the most advanced pressure monitor on the market. Designed specifically to meet the needs of critical spaces, the PMT provides single or multi-room pressure monitoring while utilizing industry-first maintenance-free pressure sensors.

  • 24/7 pressure monitoring
  • High resolution display
  • Maintenance-free pressure measurement
  • BACnet MS/TP

Catalogue



BFC – BACnet Flow Controller

BFC – BACnet Flow Controller

Overview

The BACnet Flow Controller (BFC) is a DDC fan controller designed specifically for controlling flow through Fan Filter Units (FFU) with EC motor technology. The BFC can control up to two ECM motors through a local setpoint which is adjustable using a push button interface on the BFC, by an analog BAS input voltage, or over BACnet.

In addition to fan control, the BFC can monitor filter pressure drop, filter loading, signal for filter changes, monitor the motor and filter lifetime in hours, as well as report airflow and air temperature over the filter. This information can be viewed from the LCD screen on the front of the BFC controller, or over BACnet on a building management system.

Catalogue
