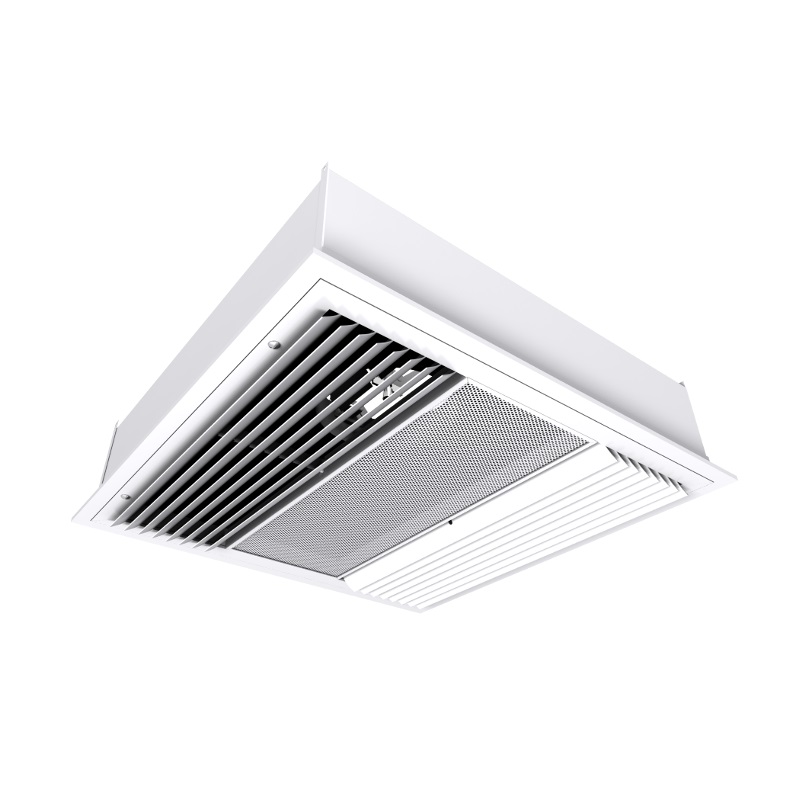

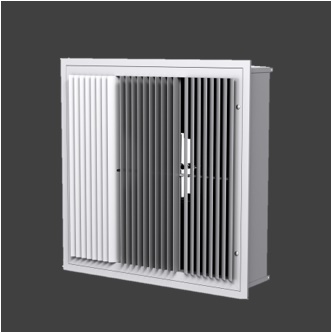

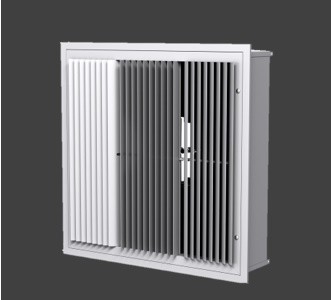

RAVD – Radial Adjustable Vane Diffuser

Overview

The Radial Adjustable Vane Diffuser (RAVD) is designed for high capacity airflow and produces a low velocity, multi-directional air pattern with field-adjustable vanes.

Typical Applications
The radial air pattern and low noise level of the RAVD allows for higher air volumes than conventional diffusers, making it suitable for laboratories, cleanrooms, medical facilities and kitchens.

Construction Options

  • Material
    • Steel (RAVD)
    • Aluminum (ARAVD)
  • Options
    • Perforated center section (RAVDP/ARAVDP)
    • Adjustable inlet damper

Catalogue PDF Download
