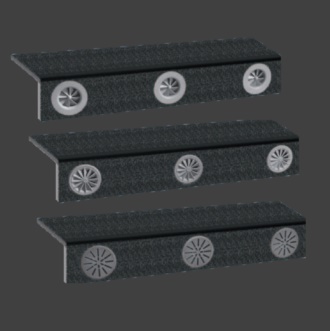

Step Twist Outlet DS

Data :
Volume flow rate range:
- Type DS-DD-DN 63: ≤ 3.3 l/s [12 m³/h]
- Type DS-DD-DN 100: ≤ 10 l/s [35 m³/h]
- Type DS-RA-DN 100: ≤ 10 l/s [35 m³/h]
- Type DS-BA-DN 150: ≤ 10 l/s [35 m³/h]
Sound power level: ≤ 18 dB(A) ref. 10-12 W

Features

  • For assembly rooms with floor steps, with and without fixed seating
  • Built into step front
  • Turbulent, radial discharge flow with intensive indoor air admixture resulting in rapid drop in jet velocity and fast temperature equalization
  • Installation in wooden or concrete steps
  • Connection to pressurized plenum
