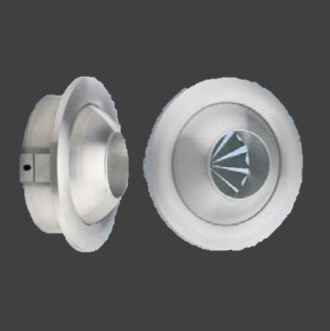

Swivel Jet Nozzle DW-V2

Data :
Volume flow rate range: 11 – 589 l/s [40 – 2 120 m³/h]
Nominal sizes: DN 60 to DN 250
Throw: 3 – 50 m
Discharge height: 2.5 – 10 m

Features

  • Circular free jet
  • Discharge direction adjustable through ± 30° around the swivel axis
  • Adjustment options: manually, by electric actuator or, without auxiliary energy, by maintenance-free thermostatic control unit
  • The thermostatic control unit allows for resetting; the swivel range can be altered in increments of 5°, up to 20˚ in total. The mechanism of the thermostatic control unit is protected from undue application of force by a device that can disengage and engage again when the nozzle is swivelled by hand.
  • Position of swivel axis also adjustable in the vertical plane, enabling to alter the discharge direction sideways
  • Low sound power level or low noise
  • Low pressure drop
  • Direct connection to supply air duct or pressurized chamber, or connection with push-in end for spiral seam duct and with slip-on end for shaped parts
  • Available with twist element to provide bigger area coverage and better induction effect.
