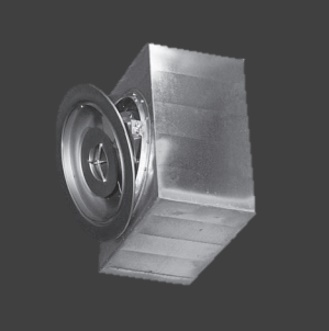

Swivel Jet Outlet SW

Data :
Volume flow rate range: 110 – 2 800 l/s [400 – 10 000 m³/h]
Nominal sizes: DN 315, DN 400, DN 600 and DN 710
Penetration depth: up to 30 m
Discharge height: 4 – 6 m

Features

  • Circular, high-turbulence free jet
  • Discharge direction adjustable in a plane by ± 20° to the air outlet axis, manually or with servomotor
  • Penetration depth adjustable by opening or closing the core tube
  • Optional ring insert for very large penetration depths
  • Connection to side of main supply air duct or with connection box
  • Even temperature gradient or high thermal comfort
  • High volume capacity
