Wall Displacement Outlets

Data :
Type Q-WL
Volume flow rate range: up to 28 l/(s•m) [100 m³/(h•m)]
Discharge velocity: ≤ 0.19 m/s
Sound power level: ≤ 33 dB(A) ref. 10-12 W
Height: 180 mm
Standard length: 0.6, 0.8, 1.0 and 1.2 m
Type Q-WR
Volume flow rate range: up to 36 l/s [130 m³/h]
Discharge velocity: ≤ 1 m/s
Sound power level: ≤ 34 dB(A) ref. 10-12 W
Nominal diameter: DN 80, DN 100 and DN 125
Outside diameter: 190, 220 and 260 mm
Type Q-WK
Volume flow rate range: up to 28 l/(s•m) [100 m³/(h•m)]
Discharge velocity: ≤ 0.19 m/s
Sound power level: ≤ 32 dB(A) ref. 10-12 W
Standard length: 0.6, 0.8, 1.0 m
Height: 280 mm
Standard length: 1.2 m
Height: 310 mm

Features

  • Installation height 2 to 4 m
  • Jet pattern downwards along the wall, then over the floor and finally vertical upflow through the occupied zone to the ceiling zone
  • Minimum supply air temperature 16 °C
  • Minimum distance to ceiling 120 mm
  • Connection from behind

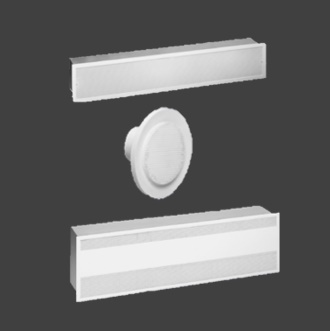

  • Type Q-WL- Rectangular outlet
  • Type Q-WR- Circular outlet
  • Type Q-WK- Combined outlet with supply air and return air segment
