Products

Microdrall MD

Microdrall MD

Features

  • With square face
  • With square or circular bar array
  • Radial jet pattern
  • Turbulence mixing air flow and high induction effect
  • With cubic connection box
  • Used as return air inlet

Catalogue

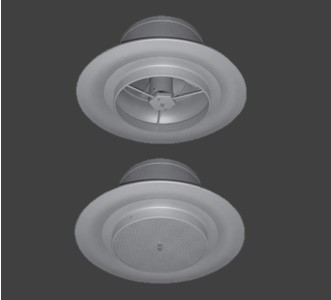

Variable Twist Outlet DD-VK

Variable Twist Outlet DD-VK

Features

  • Adjustable discharge direction from horizontal to vertical, manually or with servomotor
  • Radial jet pattern
  • Turbulent mixing airflow
  • Even temperature and humidity distribution throughout the room
  • Available with curved intake to meet low noise level requirements

Catalogue

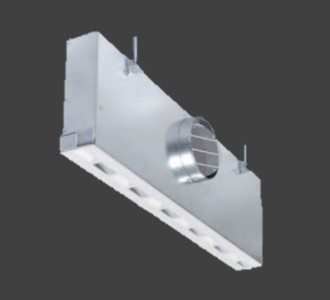

Induction Outlet with Preset Discharge Direction IN-N6

Induction Outlet with Preset Discharge Direction IN-N6

Features

  • Stable single jets with alternating inclined discharge, or one-sided single jets at half the volume flow rate, for all ceilings
  • Low noise or low sound power
  • High thermal comfort
  • Fixed discharge angle of 45° to horizontal
  • With connection box and circular connection spigot
  • Momentum control device manually adjustable for optimum adjustment of jet momentum to design volume flow rate, or for one-sided air discharge at half volume flow rate

Catalogue

Adjustable Induction Outlet IN-V

Adjustable Induction Outlet IN-V

Features

  • Stable single jets with alternate or one-sided discharge, for all ceilings
  • Discharge direction adjustment from horizontal to nearly vertical
  • Type IN-V2: element width: 28 mm per row; also available in 2, 3 or 4 rows
  • Type IN-V3: element width: 15 mm; 1 row
  • With connection box and circular connection spigot
  • High induction effects and high thermal comfort.
  • Low noise or low sound power
  • Optional Adjustable Volume Control Damper from the room
  • Can flush with the ceiling

Catalogue

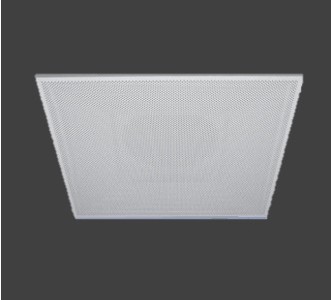

Opticlean OC-Q

Opticlean OC-Q

Features

  • Radial, horizontal jet spread at high level of thermal comfort
  • 180 degree discharge, high induction effect and high coanda effect
  • Perforated square face, grid dimensions: 600 x 600 mm and 625 x 625 mm
  • Anti-dust, extremely clean and non-smudging.
  • Excellent anti-condensation property
  • Low noise or low sound power
  • Low pressure drop
  • Can be totally invisible and perforated ceiling can be used as diffuser surface based on certain free area and hole diameter.

Catalogue

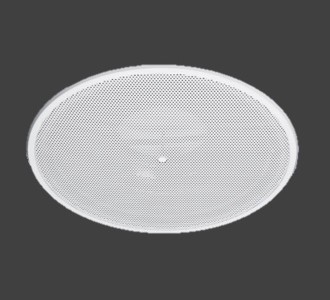

Circular Opticlean OC-R

Circular Opticlean OC-R

Features

  • Steady radial jet spread resulting in high thermal comfort
  • Radial, horizontal jet spread at high level of thermal comfort
  • 180 degree discharge, high induction effect and high coanda effect
  • Perforated circular faceplate, hole diameter 3 mm
  • Anti-dust, extremely clean and non-smudging.
  • Excellent anti-condensation property
  • Low noise or low sound power
  • Low pressure drop

Catalogue

Linear Whirl Outlet WL

Linear Whirl Outlet WL

Features

  • Linear free jet consisting of 5 to 7 single jets, depending on type
  • Discharge direction nearly horizontal
  • High turbulence mixing or high induction effect
  • Low noise and low sound power level
  • Low pressure drop
  • 3 sizes for different penetration depths
  • Also available with low height for low ceiling plenums
  • Connection box for flexible duct connection, or direct connection to main air duct

Catalogue



Swivel Jet Nozzle DW-V2

Swivel Jet Nozzle DW-V2

Features

  • Circular free jet
  • Discharge direction adjustable through ± 30° around the swivel axis
  • Adjustment options: manually, by electric actuator or, without auxiliary energy, by maintenance-free thermostatic control unit
  • The thermostatic control unit allows for resetting; the swivel range can be altered in increments of 5°, up to 20˚ in total. The mechanism of the thermostatic control unit is protected from undue application of force by a device that can disengage and engage again when the nozzle is swivelled by hand.
  • Position of swivel axis also adjustable in the vertical plane, enabling to alter the discharge direction sideways
  • Low sound power level or low noise
  • Low pressure drop
  • Direct connection to supply air duct or pressurized chamber, or connection with push-in end for spiral seam duct and with slip-on end for shaped parts
  • Available with twist element to provide bigger area coverage and better induction effect.

Catalogue

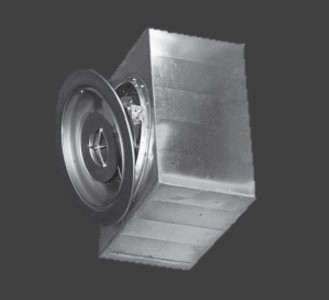

Swivel Jet Outlet SW

Swivel Jet Outlet SW

Features

  • Circular, high-turbulence free jet
  • Discharge direction adjustable in a plane by ± 20° to the air outlet axis, manually or with servomotor
  • Penetration depth adjustable by opening or closing the core tube
  • Optional ring insert for very large penetration depths
  • Connection to side of main supply air duct or with connection box
  • Even temperature gradient or high thermal comfort
  • High volume capacity

Catalogue
